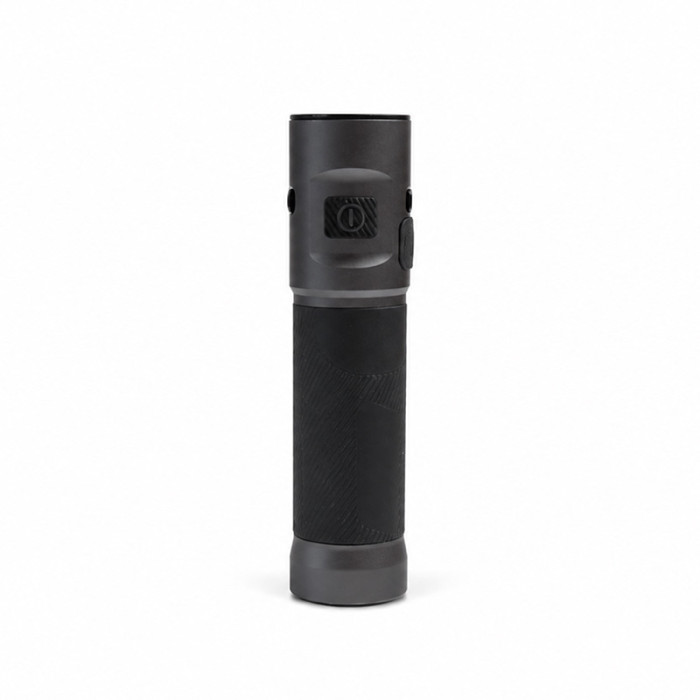

Compact EDC Flashlight with XPG4+COB | Magnetic Base and Long Runtime
| Share | |
|---|---|
| Categories | Custom EDC Light |
| Brand | OWLAMP Work Light | OEM & ODM Manufacturer |
| Model | XS-SDR1007 / XS-W0052 |
| Light Source | XPG4 + COB |
| Brightness | 50 | 200 | 300 | 600 | 1000 Lumens |
| CRI | >95 / >80 |
| Battery | 2200 / 2600mAh Li-ion |
| Runtime | 30 | 7 | 6 | 3 | 0.5 H |
| Charging Time | <3.5H |
| Waterproof | IP65 |
| Impact Resistance | 2m |
| Certification | CE, RoHS |
| Download |  |
Detail Information
CRI 95 on XS-SDR1007 Makes Wire Colors, Fluids and Surface Detail Easier to Judge
This compact EDC flashlight is offered in two closely related configurations for different work priorities. XS-SDR1007 pairs 900 lumens with CRI 95 for more faithful color recognition, while XS-W0052 reaches 1000 lumens with a 2600mAh battery and up to 36.5 hours runtime. Both share a 31 × 145.5 mm cylindrical body, CREE XPG4 + COB lighting, pocket clip, magnetic base and USB-C charging, giving buyers one compact platform with two performance directions.
● CRI 95 on XS-SDR1007 Makes Wire Colors, Fluids and Surface Detail Easier to Judge
● Need More Output? XS-W0052 Reaches 1000 Lumens with a Larger 2600mAh Battery
● CREE XPG4 + COB Gives the Compact Body More Than a Single-Light-Source Role
● At 31 × 145.5 mm, the Round Body Fits Naturally into a Gloved Hand or Tool Pocket
● The Textured Anti-Slip Grip Helps Maintain Control When Hands Are Dusty or Oily
● A Pocket Clip Keeps the Light on Workwear, Ready for the Next Inspection Point
● On Steel Cabinets, Frames or Vehicle Panels, the Magnetic Base Can Hold the Beam at Working Height
● Up to 36–36.5 Hours at Lower Output Extends Availability Across Long Shifts and Standby Periods
Compact Light Where Larger Torches Get in the Way
Grip It, Clip It or Hold It on Steel
Performance Data
Mode | Color Temperature | CRI | Luminous Flux (lm) | Runtime(H) |
| COB & LED | 5700K | >85 | 1600 | 0.5 |
| LED High | 5700K | >85 | 600 | 3 |
| LED Medium | 5700K | >85 | 300 | 6 |
| LED Low | 5700K | >85 | 50 | 30 |
COB | 5700K | >85 / >95 | 200 | 7 |
Options Example for Compact EDC Flashlight Programs
Compact EDC Flashlight FAQ
Which model is better when accurate color recognition matters?
XS-SDR1007 is the stronger fit for color-sensitive inspection because the supplied specification lists CRI 95. Its maximum output is 900 lumens with a 2200mAh battery and a rated runtime of about 3.5–36 hours.
Which compact EDC flashlight version provides the higher output and battery capacity?
XS-W0052 reaches 1000 lumens and uses a 2600mAh battery. Its listed runtime is approximately 3–36.5 hours, making it the higher-output and higher-capacity option of the two configurations.
Is this portable EDC flashlight intended for long work shifts?
Yes. Both configurations list maximum runtimes around 36 hours at lower-output operation. That makes the platform useful for technicians who need one compact light to remain available across extended shifts, inspections or standby periods.
Can the flashlight stay fixed while both hands are working?
Yes. A magnetic base is built into the product, allowing it to attach to suitable steel surfaces such as cabinets, frames or vehicle bodywork. The exact holding strength depends on the mounting surface and orientation.
How easy is this handheld light for EDC to carry and control?
Both models use the same 31 × 145.5 mm cylindrical body and weigh 150g. The pocket clip supports workwear carry, while the textured grip gives the hand a more secure contact surface during automotive, MRO, HVAC or jobsite inspection.
