Home / All / Custom EDC Light / Rechargeable EDC Flashlight with 90° Rotating Head | XPG4+COB | Magnetic

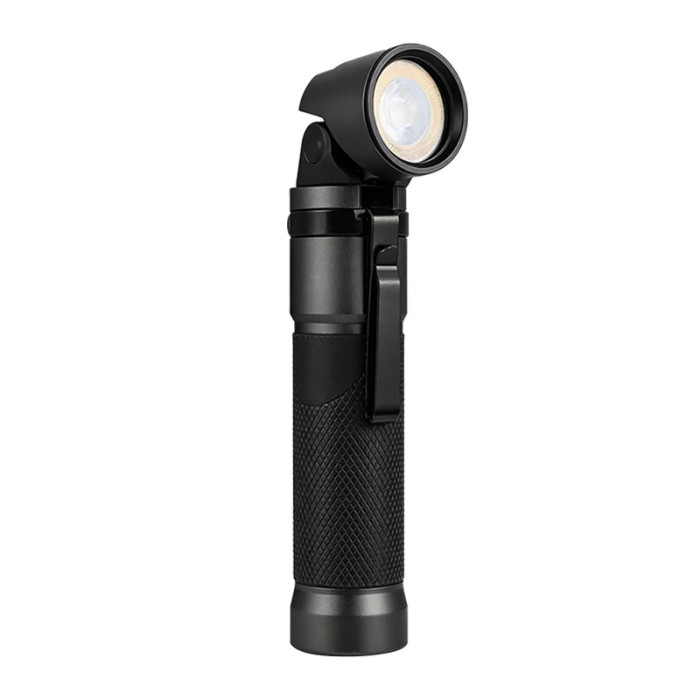

Rechargeable EDC Flashlight with 90° Rotating Head | XPG4+COB | Magnetic
| Share | |
|---|---|
| Categories | Custom EDC Light |
| Brand | OWLAMP Work Light | OEM & ODM Manufacturer |
| Model | XS-SDR1006 / XS-W0051 |
| Light Source | XPG4 + COB |
| Brightness | 50 | 200 | 300 | 600 | 1000 Lumens |
| CRI | >95 / >80 |
| Battery | 2200 / 2600mAh Li-ion |
| Runtime | 30 | 7 | 6 | 3 | 0.5 H |
| Charging Time | <3.5H |
| Waterproof | IP65 |
| Impact Resistance | 2m |
| Certification | CE, RoHS |
| Download |  |
Detail Information
Recharge, Reposition, Keep Working
A rechargeable EDC flashlight earns its place in daily work when it can stay useful through more than one task. This model combines a rechargeable 18650 platform with a 90° rotating head, letting the same light move from handheld inspection to angled task lighting without changing tools. The XS-SDR1006 pairs 900 lumens with a 2200mAh battery and CRI 95, while the XS-W0051 raises output to 1000 lumens with 2600mAh capacity. Both keep the same 31 × 145.5 mm format, so buyers can separate performance tiers without changing the basic carrying experience.
● A 90° Rotating Head Redirects the Beam Without Repositioning Your Wrist
● XPG4 + COB Combines a Defined Spot with Wider Flood Coverage in One Tool
● The Magnetic Tail Holds the Light Upright on Steel for Stable Task Illumination
● A Metal Clip Lets the Rotating Head Work from a Pocket, Belt or Workwear Edge
● 900/1000-Lumen Model Options Cover Different Brightness and Battery Priorities
● CRI 95 Is Available for Work Where Surface Color and Detail Need Better Accuracy
● IP65 and 2 m Impact Resistance Make the Body Better Suited to Rough Daily Handling
● USB-C Charging in Under 3.5 Hours Keeps the Light Easy to Return to Service
Where Rechargeable EDC Lighting Matters Most
Rechargeability Is Only Useful When the Light Is Easy to Position
Performance Data
Mode | Color Temperature | CRI | Luminous Flux (lm) | Runtime(H) |
| COB & LED | 5700K | >85 | 1600 | 0.5 |
| LED High | 5700K | >85 | 600 | 3 |
| LED Medium | 5700K | >85 | 300 | 6 |
| LED Low | 5700K | >85 | 50 | 30 |
COB | 5700K | >85 / >95 | 200 | 7 |
Compact EDC Flashlight Custom Examples
Compact EDC Flashlight FAQ
What makes this rechargeable EDC flashlight different from a fixed-head model?
The head can rotate through 90°, so the body and beam do not have to point in the same direction. That makes the light easier to use when it is clipped to clothing, attached magnetically, or placed beside a component.
What are the differences between the two rechargeable EDC flashlight models?
The supplied product data shows XS-SDR1006 at 900 lumens with a 2200mAh battery and CRI 95, while XS-W0051 reaches 1000 lumens with a 2600mAh battery and CRI 80. Both use the same 31 × 145.5 mm body size.
How long can the EDC flashlight rechargeable models operate?
The listed runtime is approximately 3.5–36 hours for XS-SDR1006 and 3–36.5 hours for XS-W0051. Actual runtime depends on the selected output level and operating conditions.
Can an EDC flashlight USB-C model be used hands-free?
Yes. The product includes a magnetic base and pocket clip. Either mounting method can hold the flashlight in place while the rotating head directs the beam toward the work area.
Why choose the CRI 95 version?
Higher CRI can make surface colors and small visual differences easier to distinguish. For inspection work where color judgment matters, the XS-SDR1006 CRI 95 configuration may be the more suitable option.
